Control Panel Geomar CIC-398 TP

CIC-398 TP


Geomar CIC 398 TP is a rugged, versatile, easy to use control system for navigation and signaling lights. The control panel switches and monitors traditional incandescent lights.
The system consists of 2 different units:

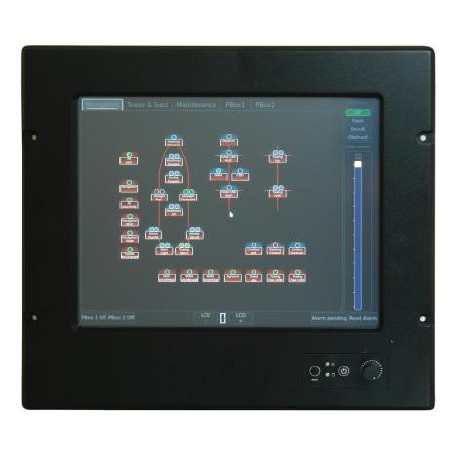

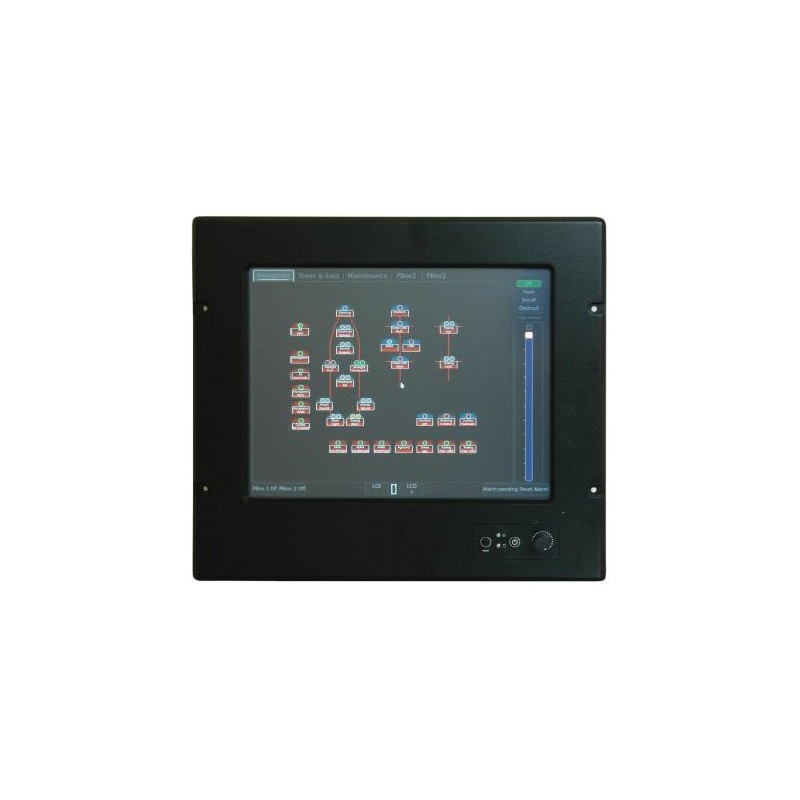

Touch Screen Control Panel:
12,1", ruggedly constructed, IP67, able to withstand the highest demands. Protected against shock and vibration. Certified by DNV.
Control box:
including power supply unit, CPU, commuting module, power modules.
Dimensions: 600x400x150.


Touch Control Panel CIC398TP Datasheet

Unilux Geomar

More details

30 other products in the same category:


All vessels requiring navigation and signal lights to be continuously monitored. Suez, Panama, Kiel Canal, Japanese Waters, St. Lawrence lights, etc.
All vessels with space problems in the console.
All military vessels needing a versatile, custom made control panel able to dim the navigation lights.

Technical Features

24V, 115V and 230V power supply. Automatic switch over from mains to emergency (Manual switch over optional)
Continuous supervision of: navigation lamps, wiring, power supply and control modules. Monitoring of status of each individual lamp, type and location of failures.

Visual and acoustic alarms. Acknowledgement and alarm test button. Automatic switch over from main lamp to spare lamp (double tier light) Mimics with LEDs showing system availability included in the panel. Dimmable control panel ensuring easy reading at night.

Sunlight readable.
Ambient light sensor.
Programmable settings: at sea, at anchor, NUC, RAM and other options according to customer’s specifications and requirements.
Galvanic isolation.
Voltage free output.
Prepared to connect 1 or several panels.
Able to integrate the Suez Canal, Kiel Canal and any other special lights.
EMC, IP67 cable glands.
BUS connection RS485.

Military Configuration

Dimmer for navigation lights.
LCD screen indicating illumination level (%) of the lamps when they are dimmed. Possibility of a mix of conventional navigation lights and friendly navigation lights (NVG), being the latter not necessary to be dimmed.
EMC cable glands.


Touch Screen certified by DNV
Specifications according to all relevant classification societies

Height300,4 cm
Width345,3 cm
Power Supply220V / 115V / 24V
ApprovalsDet Norske V eritas (DNV), accor ding to EN-ISO 14744
PurposeCivil or Naval operations
Panel typeTouch
