For vessels involved in night flights with helicopters and other aircrafts minimizing the glare produced in NVG by Red and IR emissions.

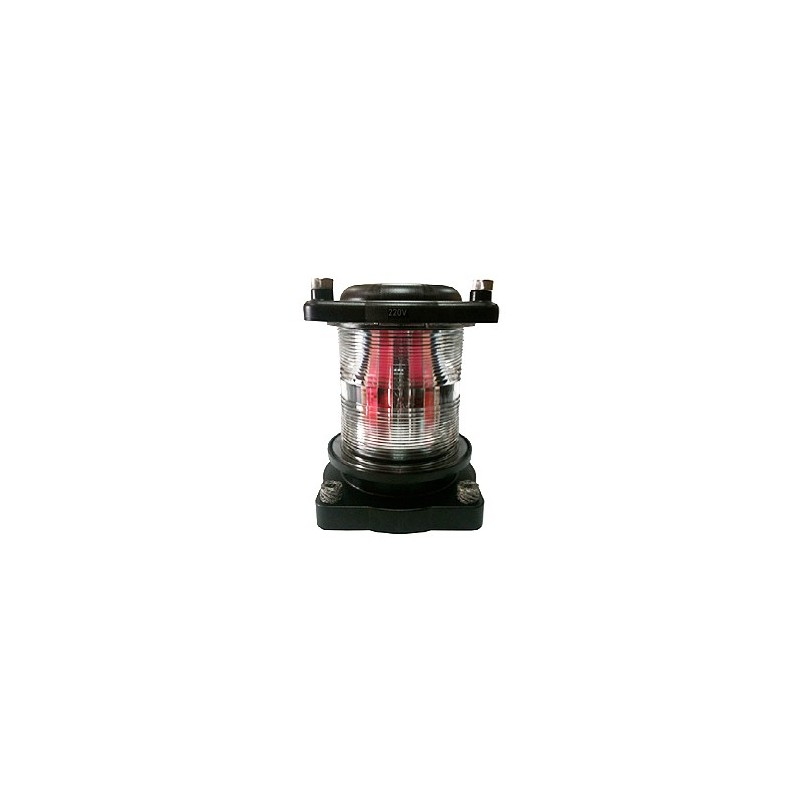

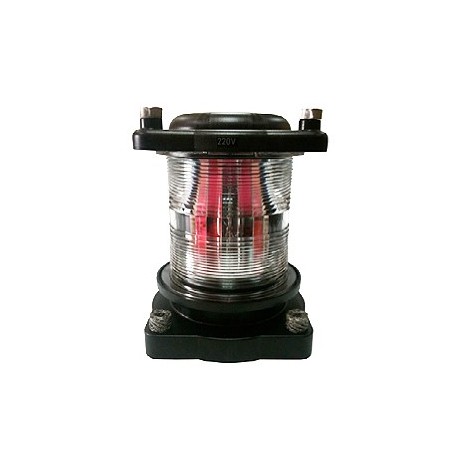

Oceanic-NVG Navigation Lights provides full solutions to match the regulations established in Stanag 1445, Stage 2, taking into consideration the contents of FAA (Federal Aviation Administration) NVG Human Factors document, for approaches, launches and recoveries in NVG Operations.
Stage 2 reads as follows: "NVG Friendly. Ship ́s lights will cause a controlled degree of interference to night vision goggles, but must be able to be clearly seen both through goggles and by the naked eye".
Our lights of the type Oceanic-NVG comply with above requirements, filtering their light emission with high quality interferencial filters wich cut-off frequencies as per class B in NVG human factors document.
Besides an anti-vibration set is delivered with every light.
Delivery of custom made lights upon request
|Height||26 cm (single) and 49 cm (double)|
|Weight||2 kg (single) - 4 kg (double)|
|Housing||Polycarbonate reinforced with fiberglass|
|Power Supply||24V 110V 220V|
|Power consumption||40W 60W 65W|
|Approvals||Det Norske V eritas (DNV), accor ding to EN-ISO 14744|
|Lens||Polycarbonate reinforced with fiberglass|
|Vessels Lenght||20 meters to 50 meters or more|
Oceanic Navigation Light for Night Vision GooglesDownload (911.08k)
