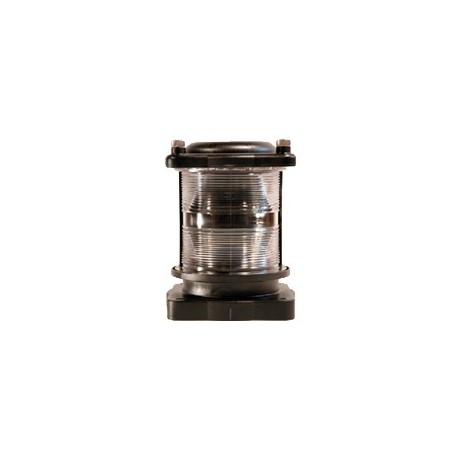

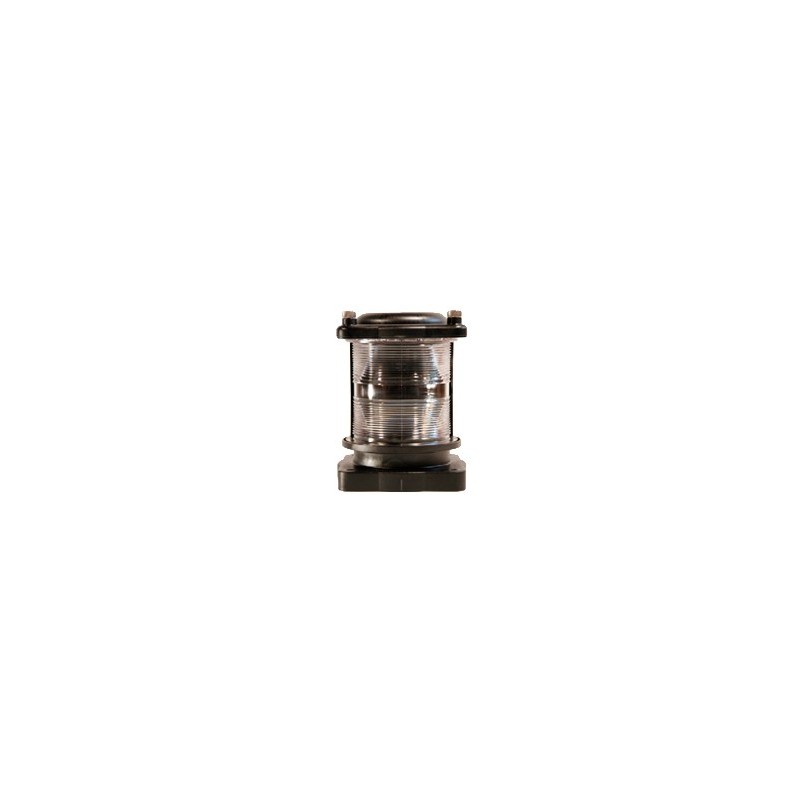

Single Deck Navigation Light

This navigation light has been developed for all sea going vessels with a lenght of 20 meters or more. According to International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72).

  • Fully resistant to sea environment
  • Non magnetic
  • Integrated terminal box in every light



Oceanic Led Datasheet

Unilux Geomar

More details

30 other products in the same category:

StarboardPortMastheadSternTowingSignallingManoeveringSuezSteering
112,5o112,5o225o135o135o360o360o135o30o
3nm3nm6nm3nm3nm3nm3nm3nm>2nm
GreenRedWhiteWhiteYellowWhite
Green
Red
Yellow
Blue		WhiteRedBlue

Application

For all sea going vessels with a lenght of 20 meters or more According to International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72).

Approvals

Det Norske Veritas (DNV), according to EN-ISO 14744.

Technical Features

Housing:Fibreglass Reinforced Polycarbonate.
Lens:Polycarbonate fresnel lens, shock and UV resistant
Access to bulb from above:Lamp easy to change
Lamp holder:P28S
Weight:2 kg
Protection:IP 66
Input voltage:24V 110V 220V
Power consumption:40W 60W 65W

Optionals

Delivery of custom made lights upon request
Antivibration system

Height26 cm (single) and 49 cm (double)
Width20,6 cm
Weight2 kg (single) - 4 kg (double)
Depth22,6 cm
HousingPolycarbonate reinforced with fiberglass
Window materialPolycarbonate fresnel lens, shock and UV resistant
ProtectionIP 66
Power Supply24V 110V 220V
Power consumption40W 60W 65W
ApprovalsDet Norske V eritas (DNV), accor ding to EN-ISO 14744
LensPolycarbonate reinforced with fiberglass
Lamp holderP28S
PurposeCivil operations
Lamp technologyINCANDESCENT
